ZK 22KW V/F control vfd frequency converter

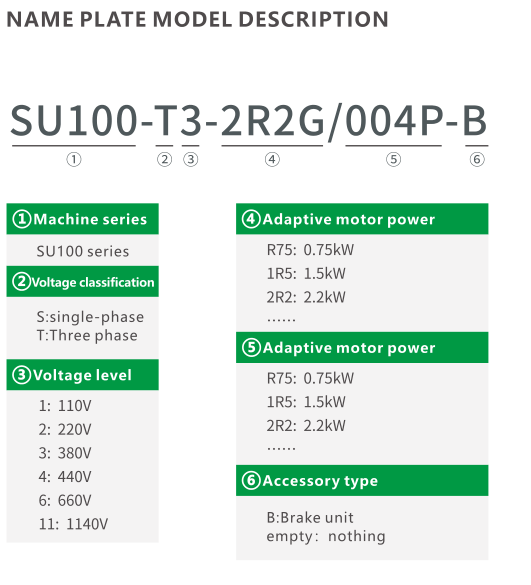

SU100-T3-022G/030P-B

Product name: Variable frequency drive
Protection function: 20 kinds of motor protection
Torque response: < 20ms (SVC)
Starting torque:induction motor: 0.25Hz/150% (SVC)
Overload tolerance:150% rated current 60s
Speed fluctuation:±0.3% ( sensorless vector control)
Speed control accuracy:±0.2% ( sensorless vector control )

Quantity:

Contact Now

add to cart

Features:

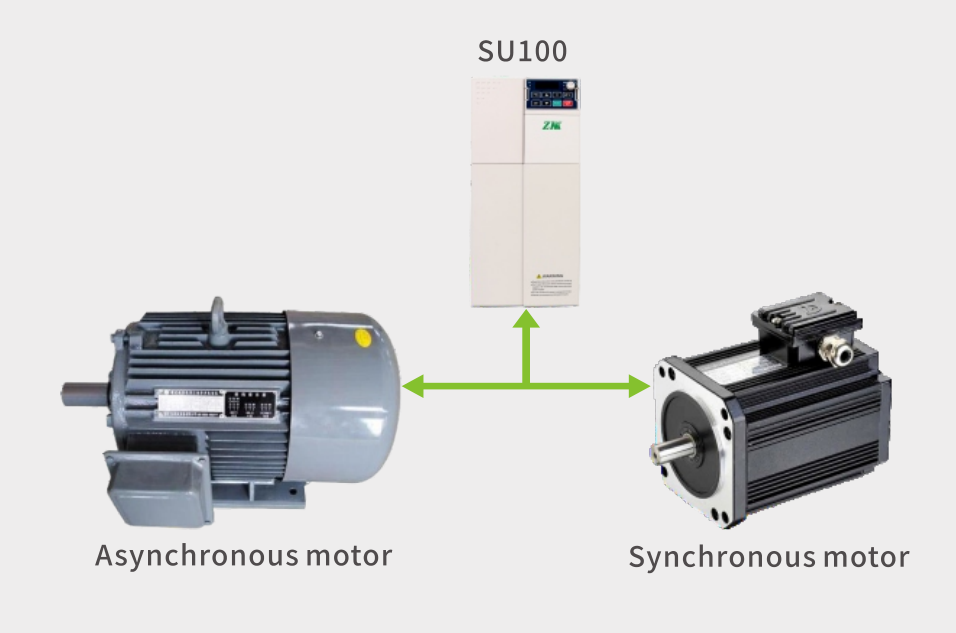

When you need simplicity and intelligence in one self-contained solution, The SU100 frequency converter covers a wide range of options. Ideal for variable and constant torque applications from pumps and fans to conveyors and mixers as well as many other variable and constant torque applications. Applying the most advanced sensorless vector control technology , 32bits DSP control system and Infineon latest IGB technology, Excellent unique ventilation design with powerful big fans.

High starting torque

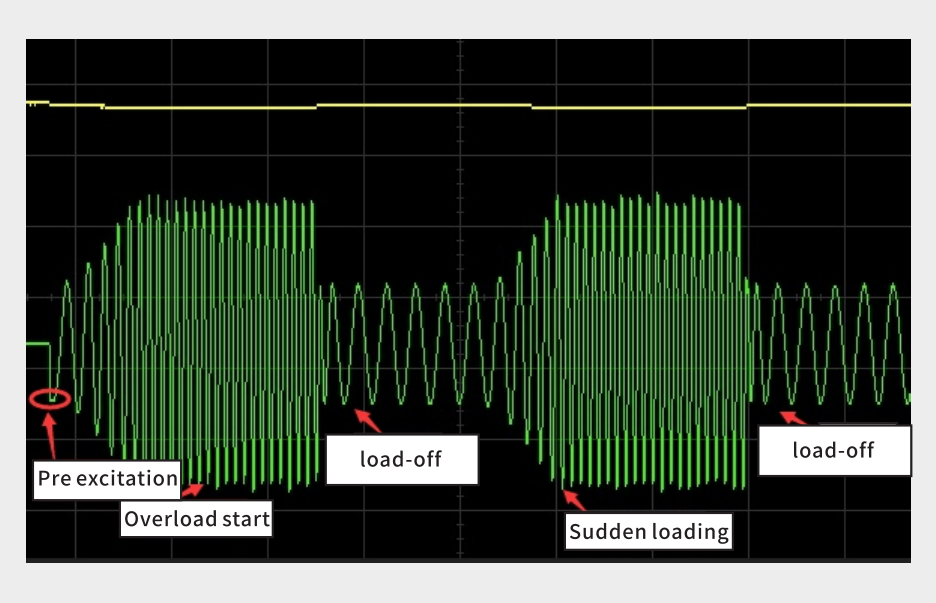

Low frequency torque is large, In closed-loop vector control mode, it can output 200% rated torque at 0.0hz

It can run stably with load at ultra -low spteed of 0.0hz. Powerful low torque output can effectively guarantee stable and smooth starting.

Model list

Model	Power Supply Capacity(KVA)	Input Current(A)	Output Current(A)	Output Voltage(VAC)	Applicant Motor		Dimensions(mm) WHD
General type： Three-phase power: 380v, 50/60Hz					KW	HP
SU100-T3-R75G/1R5P-B	0.75/1.5	3.4	3/4	0-380	0.75	1	89190135
SU100-T3-1R5G/2R2P-B	1.5/2.2	5	4/6	0-380	1.5	2
SU100-T3-2R2G/004P-B	2.2/4	5.8	6/9.2	0-380	2.2	3
SU100-T3-004G/5R5P-B	4/ 5.5	11	9.2/13	0-380	3.7	5	106230148
SU100-T3-5R5G/7R5P-B	5.5 / 7.5	14.6	13/17	0-380	5.5	7.5
SU100-T3-7R5G/011P-B	7.5/ 11	20.5	17/25	0-380	7.5	10
SU100-T3-011G/015P-B	11/15	26	25/32	0-380	11	15	130275160
SU100-T3-015G/018P-B	15 / 18	35	32/37	0-380	15	20	130275160
SU100-T3-018G/022P-B	18 / 22	38.5	37/45	0-380	18.5	25	155335191
SU100-T3-022G/030P-B	22 / 30	46.5	45/60	0-380	22	30	155335191
SU100-T3-030G/037P	30 / 37	62	60/75	0-380	30	40	195445420
SU100-T3-037G/045G	37 / 45	76	75/90	0-380	37	50	195445420
SU100-T3-045G/055P	45 / 55	92	90/112	0-380	45	60	240560520
SU100-T3-055G/075P	55 / 75	113	112/150	0-380	55	75
SU100-T3-075G/093P	75 / 93	157	150/176	0-380	75	100
SU100-T3-093G/110P	93 / 110	180	176/210	0-380	90	120	270640582
SU100-T3-110G/132P	110 / 132	214	210/253	0-380	110	150
SU100-T3-132G/160P	132 / 160	256.0	253/304	0-380	132	175

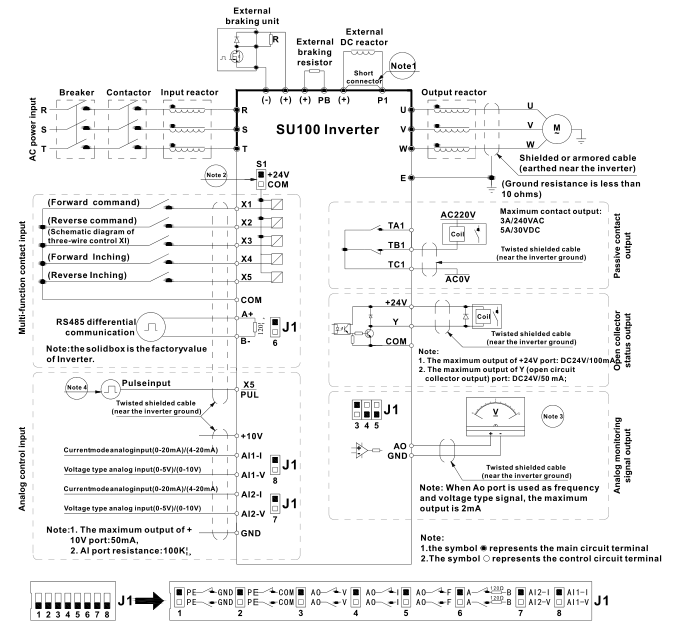

Wiring diagram

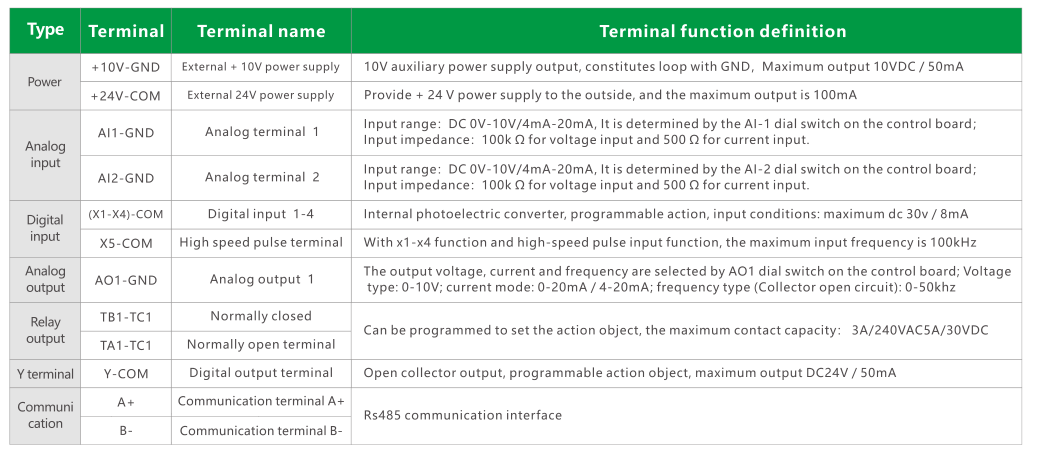

Description of Control Board Terminals
