SU10M 2.2KW 220V solar pump inverter

SU10M-D2-2R2G-B

SU10/SU100 series solar pump inverters is a low voltage pumps inverter of0.3 to 400KW above rating designed to operate with energy drawn from solar panel or photovoltaic cells (PV).

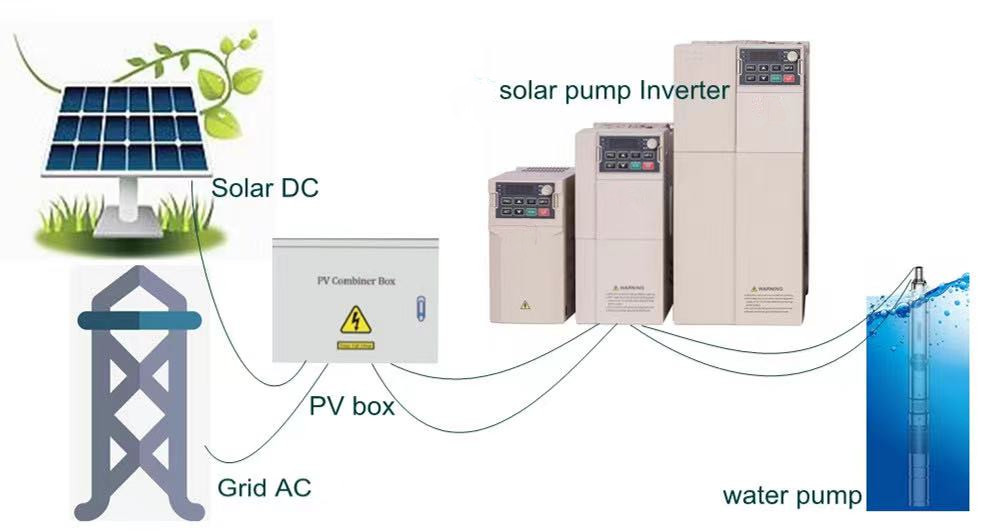

The inverters is customized to operate in dual supply mode (Ac and DC), so the grid connected supply is used in the absence of energy from PV cells. This drive functions with the latest in technology maximum power point tracking (MPPT) algorithm to derive maximum power from the PV cells at any instant.

Quantity:

Contact Now

add to cart

Product details：

The appearance is simple and elegant, with a narrow body structure design that saves installation space; The excellent MPPT function enables an efficiency of 99.9% and automatic tracking of light throughout the day; It can drive various types of water pumps (permanent magnet synchronous, asynchronous, single-phase motors, etc.); Higher performance and multiple protection functions* Isolation and air duct design to improve dust resistance.

Application：

4.0kw water pump inverter is a device that is designed to control the speed and power consumption of a water pump motor. This type of inverter is commonly used in irrigation systems, water treatment plants, and swimming pools to improve energy efficiency and reduce operating costs.

Technical Specifications

Recommended MPPT voltage range	80 ~350VDC input for 110V/160V/220V pumps, 0.75kw
	150~400VDC for 220Vac/240V pumps, 0.75Kw to 4kw
	450-800vDC for 380Vac pumps, 0.75Kw to 4.0Kw
Recommended input voltage	170Vmp DC for 110Vac pumps. 260Vmp DC for 160Vac pumps
Recommended input voltage	350Vmp DC for 220Vac pumps, 620Vmp DC for 380Vac pumps
Motor type	Control for permanent magnet synchronous motor and asynchronous motor pumps
Maximum DC power input	1. 450VDC for 220Vac output 2. 800VDC for 380Vac output
Rated output voltage	1 phase, 110V/160V/220V. 3 phase, 220V/380V
Output frequency range	50/60Hz, MAX 0-600Hz
VFD efficiency	≧96%
MPPT efficiency	≧99.6%
Ambient temperature range	-10~+50℃, derating between 40~50℃, 1℃ per generation, rated output current reduced by 1%
Solar pump control special performance	MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected, etc.
Protection function	Stall protection, phase loss protection, phase short circuit protection , ground to phase short circuit protection , input and output short circuit protection, over-temperature protection, etc.
Protection degree	IP20, Air force cooling
Running mode	MPPT or CVT
Altitude	Below 1000m; above 1000m, derated 1% for every additional 100m.

Models list

Model.No	Rate current (A)	Applicable for pumps	Maximum DC (V)	Output voltage VAC	Gross weight (kg)	Dimensions（mm）
mini type: D2：150V DC to 450V DC or 220V±15% AC Input, 50/60Hz, 3 Phase 0-220Vac ouptut
SU10M-D2-R75G-B	4A	0.75kw	450V	0-220V	1.46	89190135
SU10M-D2-1R5G-B	7A	1.5kw	450V	0-220V	1.51
SU10M-D2-2R2G-B	10A	2.2kw	450V	0-220V	2.36
mini type: D3：250V DC to 750V DC or 380V±15% AC Input, 50/60Hz, 3 Phase 0-380Vac ouptut
SU10M-D3-R75G-B	3A	0.75kw	450V	0-220V	1.46	89190135
SU10M-D3-1R5G-B	5A	1.5kw	450V	0-220V	1.51
SU10M-D3-2R2G-B	7.5A	2.2kw	450V	0-220V	2.36
SD10M-D3-004G-B	10A	4.0kw	450V	0-220V	2.38	106230148
