SU100 7.5KW 900Vdc solar pump drive

SU100-D3-7R5G-B

Input Voltage: 250-800Vdc or 3phase 380Vac
Output Voltage: 3phase 380V/440V
Output Current: 17A
Output Frequency: 50HZ/60HZ
Certificate: ISO CE IEC COC
Warranty: 18th months
Weight: 2.5kg
Application: Solar Water Pumping

Quantity:

Contact Now

add to cart

SU100 7.5KW solar pump drive

Solar pump system consists of 3 parts: solar cell array, solar inverter and pump.
SU100 series solar pump inverter are specially designed and manufactured for this system by Canroon, using electric energy generated by solar panel to power water pump, and deliver water from underground or river to applications like farm irrigation, desert greening, garden fountain, etc.

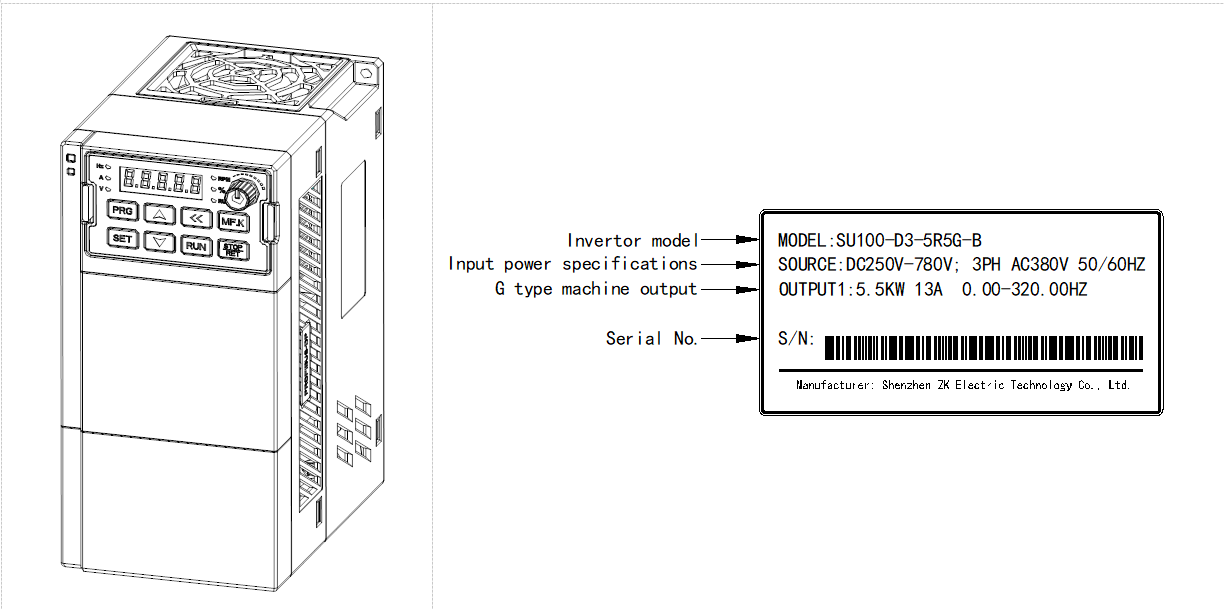

Field	Identification	Label description
Inverter type	1	SU100 series vector control inverter
Voltage classification	2	D:DC input；T: AC380V input
Input Voltage level	3	1：DC90V-400V, Suitable for driving pumps with 110VAC
		2：DC150V-450V, Suitable for driving pumps with 220VAC
		3：DC250V-780V ,or AC380V, Suitable for driving pumps with 380VAC
		3：DC350V-780V ,or AC380V, Suitable for driving pumps with 380VAC
Adaptive motor power	4	1R5：1.5KW 2R2：2.2KW 4：4KW
Adaptive motor power	4	5R5：5.5KW 7R5：7.5KW 22：22KW
Inverter type	5	G：General purpose P：Fan pump type
Brake function	6	B:Equipped with brake function

Item		Specification
Power input	Voltage, frequency	D1: 90V DC to 400V DC or 110V±15% AC, 50/60Hz
		D2:150V DC to 450V DC or 220V±15% AC, 50/60Hz
		D3: 250V DC to 750V DC or 380V±15% AC, 50/60Hz
		T3: 350V DC to 750V DC or 380V±15% AC, 50/60Hz
	Allowable fluctuations	voltage unbalance rate:<3%; Frequency:±5%; aberration rate: as IEC61800-2 required
	Power factor	≥0.94(with DC reactor)
	Efficiency	≥96%
Output	Output voltage	Output under rated condition: 3 phase, 0～input voltage, inaccuracy<5%
	Output frequency range	G type:0～600Hz
	Output frequency accuracy	Max frequency ±0.5%
	Overload capacity	G type: 150% rated current/1 min, 180% rated current/10s, 200% rated current/0.5s
Main control performance	Motor control mode	V/F without PG , VC without PG , VC with PG
	Speed control range	Vector control without PG, rated load 1:100;Vector control with PG, rated load 1:1000;
	Steady speed accuracy	VC without PG: ≤2% rated synchronized speed;
	Steady speed accuracy	VC with PG: ≤0.05% rated synchronized speed
	Starting torque	VC without PG: when 0.5Hz, 150% rated torque;
	Starting torque	VC with PG: when 0Hz, 200% rated torque
	Torque response	VC without PG: ≤20ms;
	Torque response	VC with PG: ≤10ms.
	Frequency accuracy	Digit setting: max frequency×±0.01%;
	Frequency accuracy	Analog setting: max frequency×±0.2%
	Frequency resolution	Digital setting: 0.01Hz;
	Frequency resolution	Analog setting: maximum frequency × 0.05%
	DC braking capacity	Starting frequency:0.00～50.00Hz; Braking time:0.0～60.0s; Braking current:0.0～150.0% rated current
Product basic functions	Torque boost capacity	Auto torque upgrade 0.0%～100.0%;
	Torque boost capacity	Manual torque upgrade 0.0%～30.0%
	V/F curve	4 modes: one linearity torque characteristic curve ,one self-setting V/F curve mode, one drop torque characteristic curve (1.1- 2.0 powers),and square V/F curve mode.
	Acceleration/Deceleration curve	2 modes: linear Acceleration/Deceleration and S curve Acceleration/Deceleration.
	Acceleration/Deceleration curve	4 sets of ACC/DEC, time unit 0.01s selectable, longest time: 650.00s.
	Rated output voltage	Rely on power supply voltage compensate function, while motor rated voltage is 100%, set it at the range of 50-100%(output can not over input voltage).
	Voltage auto-adjustment	While power supply voltage fluctuates, it can auto-keep constant output voltage.
	Auto energy-saving running	While under V/F control mode, according to load situation, auto-optimize output voltage to save energy.
	Standard functions	PID control, speed track, power off restart, jump frequency, upper/lower frequency limit control, program operation, multi- speed, RS485, analog output, frequency impulse output.
	Frequency setting channels	Keyboard digital setting, keyboard potentiometer ,Analog voltage/current terminal AI1、AI2, Communication given and multi-channel terminal selection, Main and auxiliary channel combination, expansion card, supporting different modes switch.
	Feedback input channel	Voltage/Current Terminal AI1, Voltage/Current Terminal AI12, Communication
	Feedback input channel	given, pulse input X5.
	Running command channel	Operation panel given、external terminal given, communication given, expansion card given.
	Input command signal	Start, stop, FWD/REV, JOG, multi-step speed, reset, ACC/DEC time selection, frequency given channel selection, exterior fault alarm.
Protective function		Overvoltage, under-voltage, current limit, over-current, overload, electric thermal relay, overheat, overvoltage stall, data protection, rapid speed protection, input/output phase failure protection.
Environment	Install place	altitude ≤ 1000m,above 1000m down the rated amount, each increase of 100m down the rated mount of 1%;no condensation, ice ,rain, snow, hail; solar radiation below 700W/㎡, air pressure 70-106 kPa.
	Temperature, humidity	-10 ～ + 50 ℃, derating above 40 ℃, maximum temperature 60 ℃ (no-load operation)5% to 95% RH (non-condensing)
	Vibration	When 9～200Hz, 5.9m/s2(0.6g)
	Storage temperature	-30 ～+60℃
	Protection grade	IP20
	Cooling method	Forced air cooling

D1: General type:90V DC to 400V DC or		D2: General type:150V DC to 450V DC or
110V±15% AC, 50/60Hz		220V±15% AC, 50/60Hz
Inverter	Current (A)	Inverter	Current (A)
specification	Current (A)	specification	Current (A)
SU100-D1-R75G-B	7	SU100-D2-R75G-B	4
SU100-D1-1R5G-B	10	SU100-D2-1R5G-B	7
		SU100-D2-2R2G-B	10
		SU100-D2-004G-B	16
D3: General type:250V DC to 750V DC or		T3: General type:350V DC to 750V DC or
380V±15% AC, 50/60Hz		380V±15% AC, 50/60Hz
Inverter	Current (A)	Inverter	Current (A)
specification	Current (A)	specification	Current (A)
SU100-D3-R75G-B	3	SU100-T3-037G	75
SU100-D3-1R5G-B	4	SU100-T3-045G	90
SU100-D3-2R2G-B	6	SU100-T3-055G	110
SU100-D3-004G-B	10	SU100-T3-075G	150
SU100-D3-5R5G-B	13	SU100-T3-090G	180
SU100-D3-7R5G-B	17	SU100-T3-110G	210
SU100-D3-011G-B	25	SU100-T3-132G	250
SU100-D3-015G-B	32	SU100-T3-160G	310
SU100-D3-018G-B	38
SU100-D3-022G-B	45
SU100-D3-030G	60
