SU10 2.2KW 3.0KW 220V 380V ZK brand variable frequency drive

SU10-4T2R2GB

SU10 2.2KW variable frequency drive has multiple protection functions, such as overload protection, short circuit protection, etc., which can effectively extend the service life of the equipment

Quantity:

Contact Now

add to cart

Features:
1. SU10 variable frequency drive has high output power and torque, suitable for various industrial applications.
2. The variable frequency drive has strong temperature resistance characteristics and can operate normally without overheating even without a fan;
3. The variable frequency drive with small in size, lightweight, easy to install, and takes up little space
4. Sufficient selection margin for IGBT and superior transient impact resistance performance; the variable frequency drive has a scientific layout and strong EMC anti-interference performance;

5. has good anti-interference ability and can effectively reduce the impact of external interference on the equipment

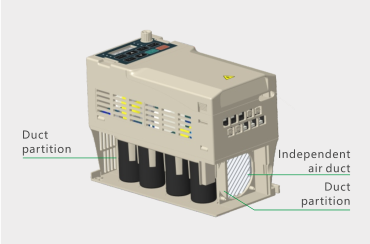

6. Independent air duct design:
High protection: completely independent air ducts, scientifically arranged inside the machine, and taking into account the heat dissipation of high power devices.
High temperature resistance: With scientific air duct design, it can quickly dissipate heat, and the machine has a low temperature rise. It does not need to be reduced in capacity when used in an ambient temperature of 50 ℃.

Model list

Model	Power Supply Capacity(KVA)	Input Current(A)	Output Current(A)	Output Voltage(VAC)	Applicant Motor		Dimensions(mm) WHD
mini type: Single-phase power: 220v, 50/60Hz					KW	HP	Dimensions(mm) WHD

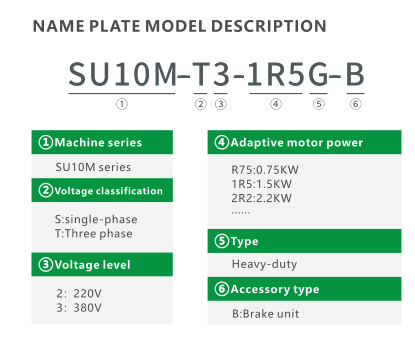

SU10M-2S0.75GB	0.75	5.4	2.3	0-220	0.4	0.5	86162128
SU10M-2S1.5GB	1.5	8.2	4	0-220	0.75	1	91175128
SU10M-2S2.2GB	2.2	14	7	0-220	1.5	2	91175128
mini type: Three-phase power: 380v, 50/60Hz
SU10M-4T0.75GB	0.75	3.4	3/4	0-380	0.75	1	86162128
SU10M-4T1.5GB	1.5	5	4/6	0-380	1.5	2
SU10M-4T2.2GB	2.2	5.8	6/9.2	0-380	2.2	3
SU10M-4T4.0GB	4	11	9.2/13	0-380	3.7	5	91175128

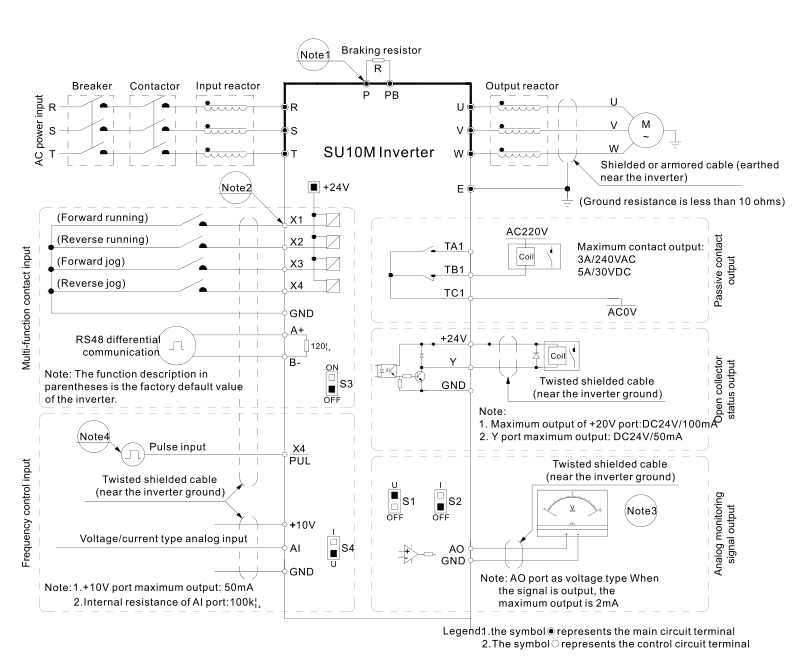

Wiring diagram

Control terminal parameters

Control board wiring terminals	Terminal	Name	Maximum input/output specifications
	Digital input	X1,X2,X3,X4-GND	1.high level：10~30V DC 2.low level：0~5V DC 3. X4(PUL):100KHz
	Digital Output	Y-GND	Open collector output 1. 0V~30V DC 2. 0mA~50 mA DC
	Analog input	AI-GND	1. 0~10V voltage input 2. 0~20 mA current input
	Analog output	AO-GND	1. 0~10V voltage output 2. 0~20 mA current output
	Relay normally open terminal	TC-TA	Contact driving capability: 1. 240VAC, 3A 2. 30VDC,5A
	Normally closed terminal of relay	TC-TB	Contact driving capability: 1. 240VAC, 3A 2. 30VDC,5A
	Power terminal	+24V~GND	24V DC,100mA
	Power terminal	+10V~GND	10V DC,50mA
	RS485 communication terminal	A+, B-	RS485 communication interface, can select whether the 120 Ω terminal resistor is connected to the bus through the third bit of the dial switch S9
