0.75-710Kw 380V three phase Frequency Inverter

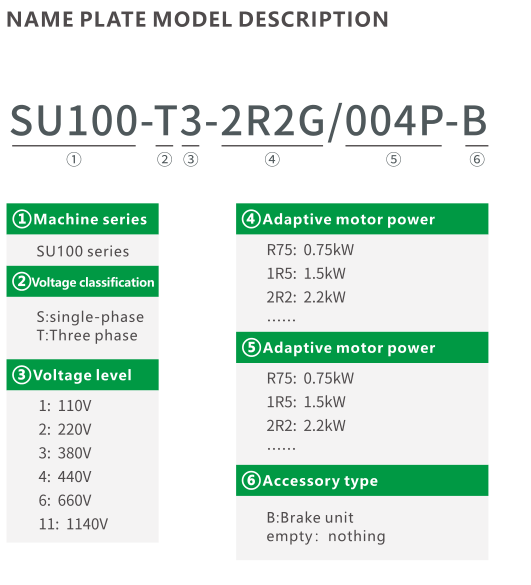

SU100-T3-004G/5R5P-B
The SU100 series frequency inverter is a new generation high-performance universal vector frequency converter designed by ZK Electric through years of in-depth exploration of the frequency converter industry, continuous technological innovation and accumulation. The technical and performance challenges encountered in industries such as cables, machine tools, metal products, petrochemicals, natural gas, lifting equipment, pulp and paper making, textiles, printing and dyeing, ceramics, etc., can be easily solved so far
Quantity:
Features:
1. The SU100 series frequency inverter (VFD) has superior low-frequency torque output performance, and can achieve a peak torque output of 200% under closed-loop control;
2. The SU100 frequency controller configure multiple expansion cards to ensure various high-performance closed-loop control applications;
3. When the power grid voltage is low, the vfd can still be used with a reduced rating (refer to the corresponding parameter settings in the manual);
4. The overall volume of the SU100 series vfd is reduced by about 30% compared to the previous generation, saving installation space;
5. The SU100 frequency inverter (VFD) can asily drive asynchronous and synchronous motors;
6. The installation volume is about 30% less than the previous generation, and the space for installing 2 units in the previous generation can accommodate 3 KV600 series machines with the same power;
7. High low-frequency torque. In closed-loop vector mode, it is possible to output 200% of the rated torque at 0.0Hz.
1. The SU100 series frequency inverter (VFD) has superior low-frequency torque output performance, and can achieve a peak torque output of 200% under closed-loop control;
2. The SU100 frequency controller configure multiple expansion cards to ensure various high-performance closed-loop control applications;
3. When the power grid voltage is low, the vfd can still be used with a reduced rating (refer to the corresponding parameter settings in the manual);
4. The overall volume of the SU100 series vfd is reduced by about 30% compared to the previous generation, saving installation space;
5. The SU100 frequency inverter (VFD) can asily drive asynchronous and synchronous motors;
6. The installation volume is about 30% less than the previous generation, and the space for installing 2 units in the previous generation can accommodate 3 KV600 series machines with the same power;
7. High low-frequency torque. In closed-loop vector mode, it is possible to output 200% of the rated torque at 0.0Hz.

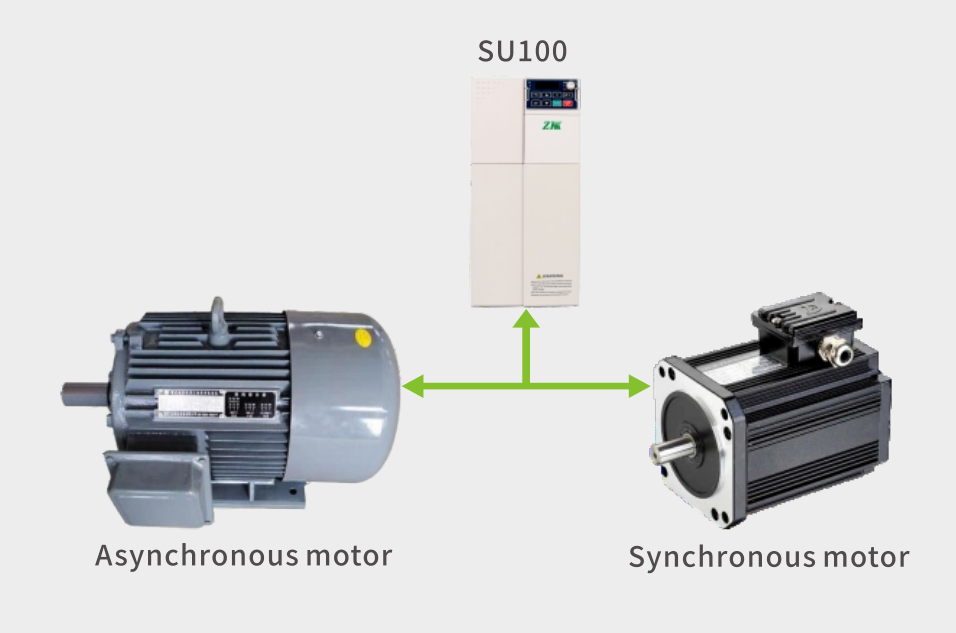

Using the new high performance current vector algorithm, it can easily drive asynchronous motor and permanent magnet synchronous motor
High starting torque

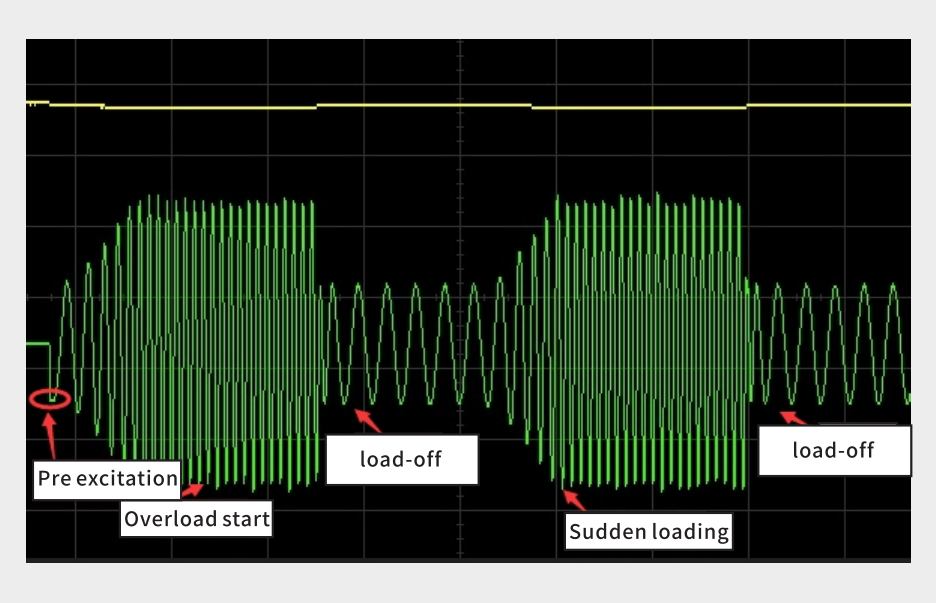

Low frequency torque is large, In closed-loop vector control mode, it can output 200% rated torque at 0.0hz
It can run stably with load at ultra -low spteed of 0.0hz. Powerful low torque output can effectively guarantee stable and smooth starting.
Model list
| Model | Power Supply Capacity(KVA) | Input Current(A) | Output Current(A) | Output Voltage(VAC) | Applicant Motor | Dimensions(mm) W*H*D | |
| General type： Three-phase power: 380v, 50/60Hz | KW | HP | |||||
| SU100-T3-R75G/1R5P-B | 0.75/1.5 | 3.4 | 3/4 | 0-380 | 0.75 | 1 | 89*190*135 |
| SU100-T3-1R5G/2R2P-B | 1.5/2.2 | 5 | 4/6 | 0-380 | 1.5 | 2 | |
| SU100-T3-2R2G/004P-B | 2.2/4 | 5.8 | 6/9.2 | 0-380 | 2.2 | 3 | |
| SU100-T3-004G/5R5P-B | 4/ 5.5 | 11 | 9.2/13 | 0-380 | 3.7 | 5 | 106*230*148 |
| SU100-T3-5R5G/7R5P-B | 5.5 / 7.5 | 14.6 | 13/17 | 0-380 | 5.5 | 7.5 | |
| SU100-T3-7R5G/011P-B | 7.5/ 11 | 20.5 | 17/25 | 0-380 | 7.5 | 10 | |
| SU100-T3-011G/015P-B | 11/15 | 26 | 25/32 | 0-380 | 11 | 15 | 130*275*160 |
| SU100-T3-015G/018P-B | 15 / 18 | 35 | 32/37 | 0-380 | 15 | 20 | |
| SU100-T3-018G/022P-B | 18 / 22 | 38.5 | 37/45 | 0-380 | 18.5 | 25 | 155*335*191 |
| SU100-T3-022G/030P-B | 22 / 30 | 46.5 | 45/60 | 0-380 | 22 | 30 | |
| SU100-T3-030G/037P | 30 / 37 | 62 | 60/75 | 0-380 | 30 | 40 | 195*445*420 |
| SU100-T3-037G/045G | 37 / 45 | 76 | 75/90 | 0-380 | 37 | 50 | |
| SU100-T3-045G/055P | 45 / 55 | 92 | 90/112 | 0-380 | 45 | 60 | 240*560*520 |
| SU100-T3-055G/075P | 55 / 75 | 113 | 112/150 | 0-380 | 55 | 75 | |
| SU100-T3-075G/093P | 75 / 93 | 157 | 150/176 | 0-380 | 75 | 100 | |
| SU100-T3-093G/110P | 93 / 110 | 180 | 176/210 | 0-380 | 90 | 120 | 270*640*582 |
| SU100-T3-110G/132P | 110 / 132 | 214 | 210/253 | 0-380 | 110 | 150 | |
| SU100-T3-132G/160P | 132 / 160 | 256.0 | 253/304 | 0-380 | 132 | 175 | |

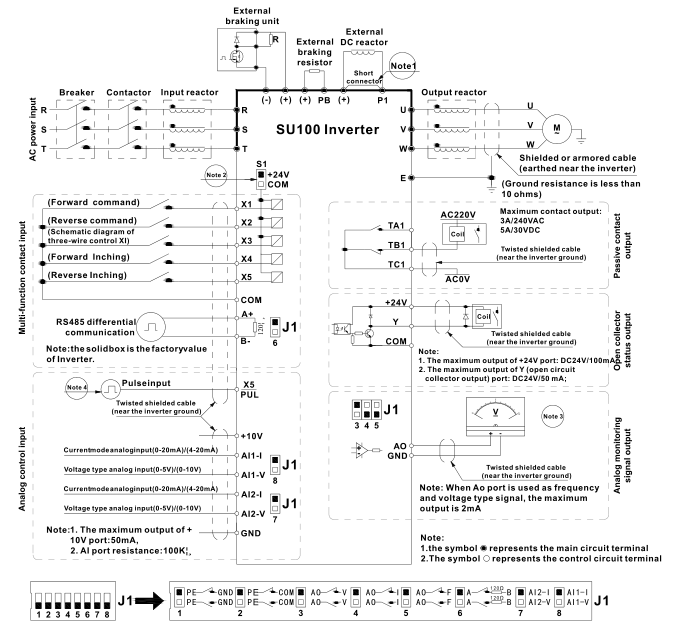

Wiring diagram

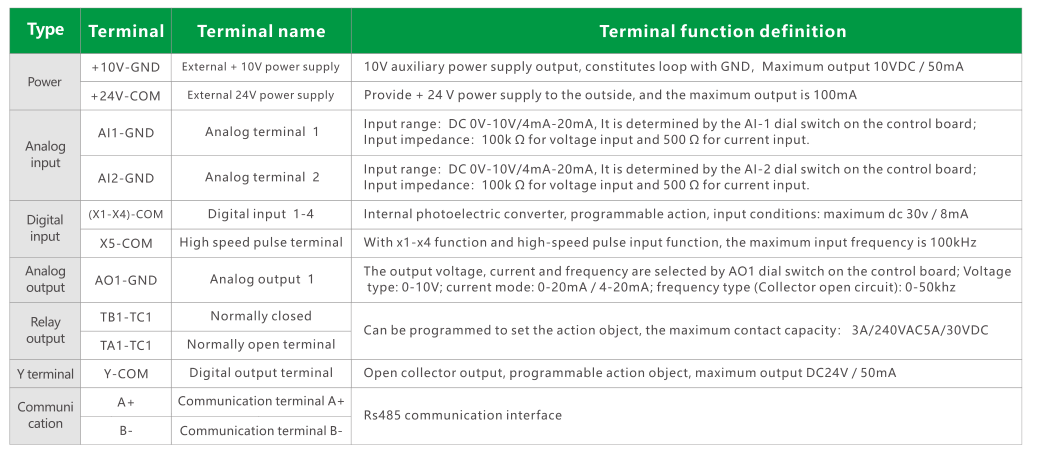

Description of Control Board Terminals
